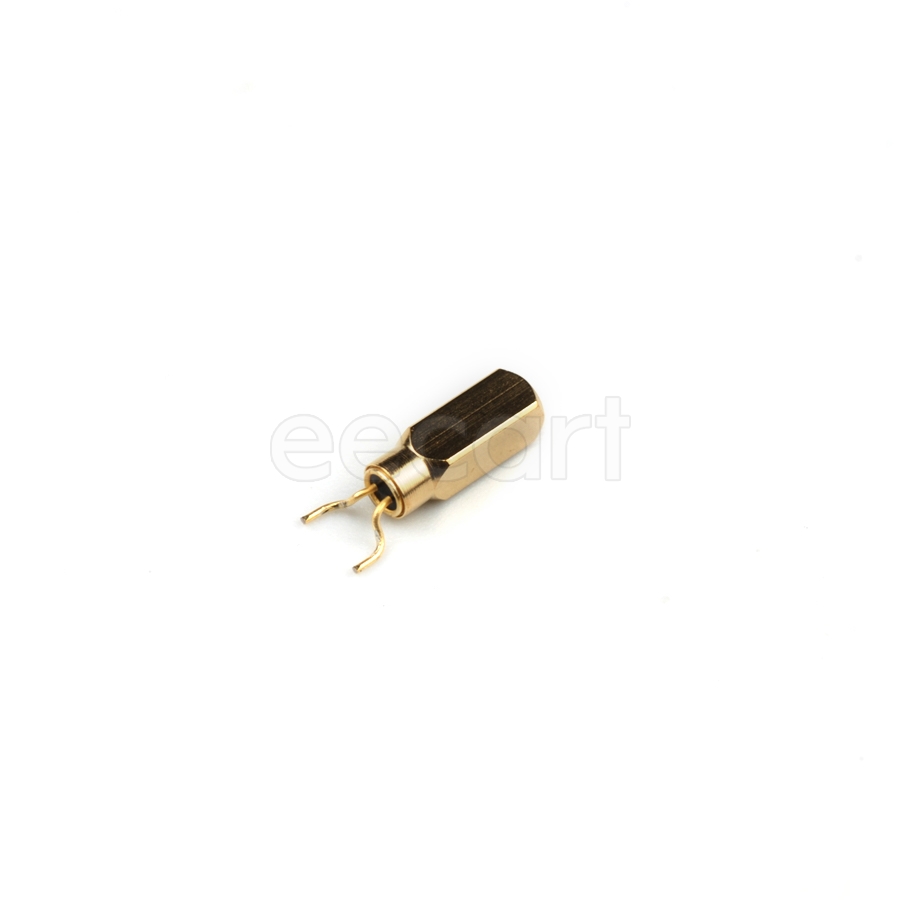

AB26TRQ-32.768KHZ-T
Manufacturer:
Abracon Corporation
Mfr.Part #:
AB26TRQ-32.768KHZ-T
Datasheet:
Description:
Crystals Cylinder SMD/SMT 32.768 kHz 12.5 pF
| Parameter | Value |
|---|---|
| Capacitance | 12.5 pF |
| Tolerance | 0.002 % |
| ESR (Equivalent Series Resistance) | 50 kΩ |
| Length | 6.7 mm |
| Width | 1.4986 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 1.4478 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| Manufacturer Package Identifier | AB26TRQ-32.768KHZ-T |
| REACH SVHC | Yes |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Load Capacitance | 12.5 pF |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Series Resistance | 50 kΩ |
| Schedule B | 8541600080 |
| Drive Level | 1 µW |
| Operating Mode | Fundamental |
| Packaging | Reel |
| Height - Seated (Max) | 1.48 mm |
Stock: 26001
Distributors
pcbx
pcbxUnit Price$0.51980
Ext.Price$0.51980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51980 | $0.51980 |
| 10 | $0.36762 | $3.67620 |
| 25 | $0.36505 | $9.12625 |
| 50 | $0.36249 | $18.12450 |
| 100 | $0.36206 | $36.20600 |
| 300 | $0.36163 | $108.48900 |
| 500 | $0.36120 | $180.60000 |
| 1000 | $0.36078 | $360.78000 |
| 3000 | $0.29324 | $879.72000 |
